Prism™

The Prism Greenhouse lights are designed to provide supplemental light in greenhouses to extend growing seasons and productivity.

These lights feature highly efficient and reliable LED designs and a narrow profile that fits under a greenhouse rail to minimize plant shading.

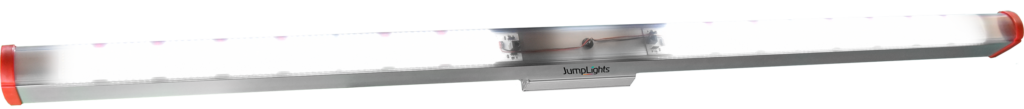

turned on prism grow light

Prism™

Greenhouse Over-Canopy
  • Our proprietary lighting technology reduces the time to harvest and increases plant yield and quality by providing higher light intensity than HPS for the same power consumption, and a spectrum that matches photosynthetic absorption. Our lights trigger and rejuvenate vital photoreceptors to increase the size of the plants.
  • Our form factor provides better uniformity and canopy penetration.
  • Our systems allow control of lighting period, light intensity and reduce time to harvest and increase output per square foot.
  • Our spectrums enable easier visual inspection and trimming of plants.

1

The Prism™ 340 is 80” long and operates at 340W from a built-in power supply and is well suited to medium-high light supplementation applications.

2

The Prism™ 170 Mini is 40” long and operates at 170W from a built-in power supply and is targeted at moderate light supplementation applications.

3

The Prism™ 340 Dual Mini consists of 2 40” lights connected by a cable to a single power supply. The spacing between the lights can be adjusted. This configuration is targeted at moderate light supplementation applications and has the advantage of lower cost and 50% fewer AC connections vs the Prism™ 170 Mini.

Prism™ Features


Input Voltage

277and 480 VAC

Three Versions

PR40 80" length, PR170 mINI 40" length, PR340 Dual Mini which is 2 PR170's operated from a single power supply.

Easy To Install

turned on prism grow light

Spectrum Optimization

Promotes premium flower development

Light Flexibility

Maximum flexibility to arrange for desired light intensity

Manufactured in the US

Prism™ Specifications

PR340PR170 MiniPR340 Dual Mini
Dimensions 4.5”H x 3”W x 80”L 4.5”H x 3”W x 40”L 2 Light Bars, Each is 4.5”H x 3”W x 40”L
Weight 11 lbs. 7 lbs. 11 lbs.
Input Voltage 277 and 480 VAC 277 and 480 VAC 277 and 480 VAC
AC Power (Max) 340W Dimmable 170W Dimmable 340W Dimmable
PPF (GH1 Spectrum): (μmol/s) 830 415 830
Efficacy (GH1 Spectrum): (μmol/J) 2.5 2.5 2.5
Dimming 0-10V 0-10V 0-10V
Certifications UL800 Wet location certified, DLC Certification pending. UL800 Wet location certified, DLC Certification pending. UL800 Wet location certified, DLC Certification pending.
Max Ambient Temperature 40° C 40° C 40° C
