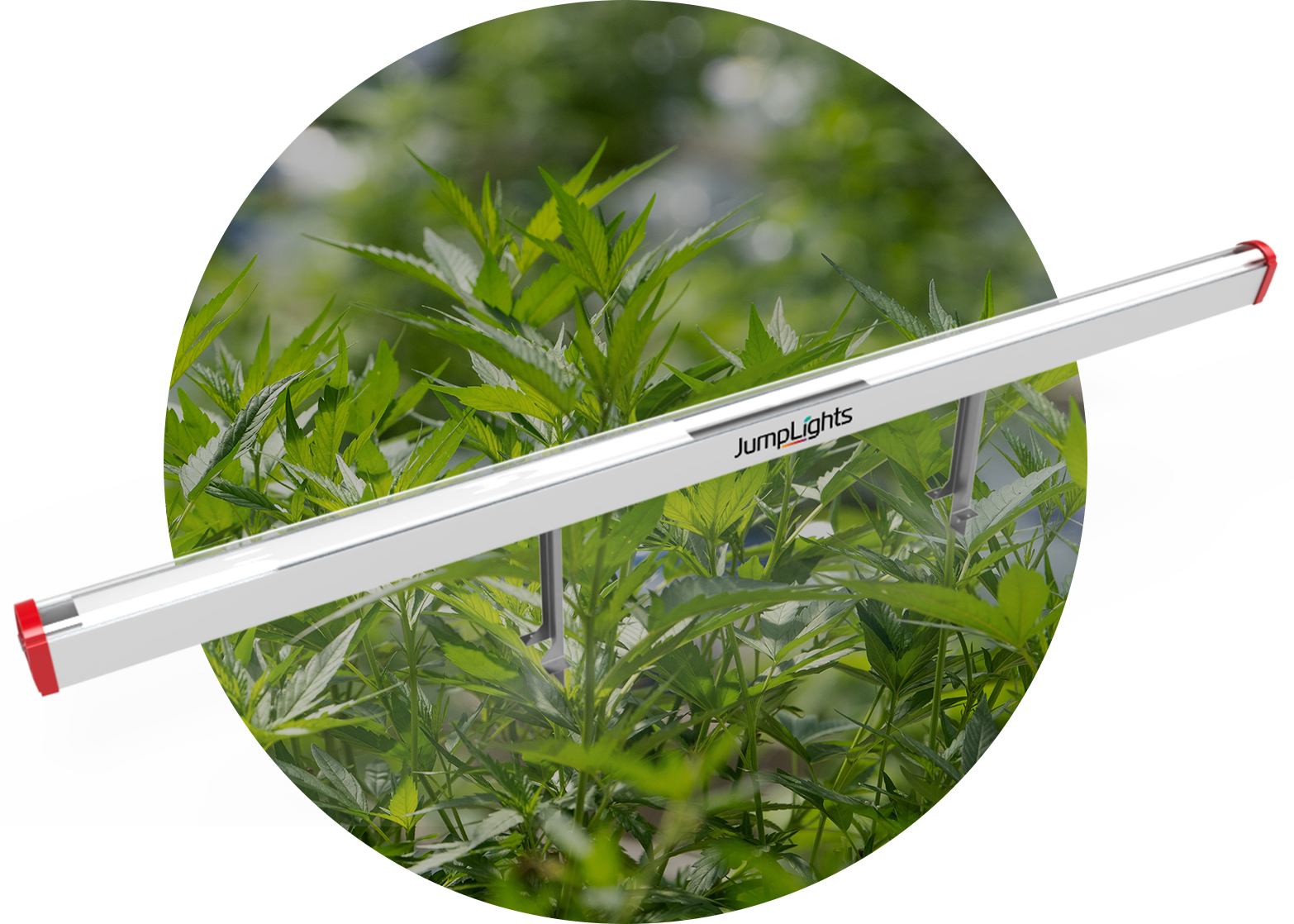

Catalyst® Mobile
The First Under Canopy Light Engineered for Mobile Grow Tables and 480V Power
The Catalyst® Mobile breaks through the barriers that long kept under canopy lighting out of greenhouse cannabis grows—especially in facilities using mobile grow tables/containers and high-voltage infrastructure.
Purpose-built for safety, mobility, and flexibility, this system delivers the proven performance of the original Catalyst® into spaces where under canopy lighting was previously thought to be impossible. With Catalyst® Mobile, growers can expect to see yield increases of up to 40% by delivering more light where it usually is lacking—beneath the canopy.
Purpose-Built for Mobile Containers

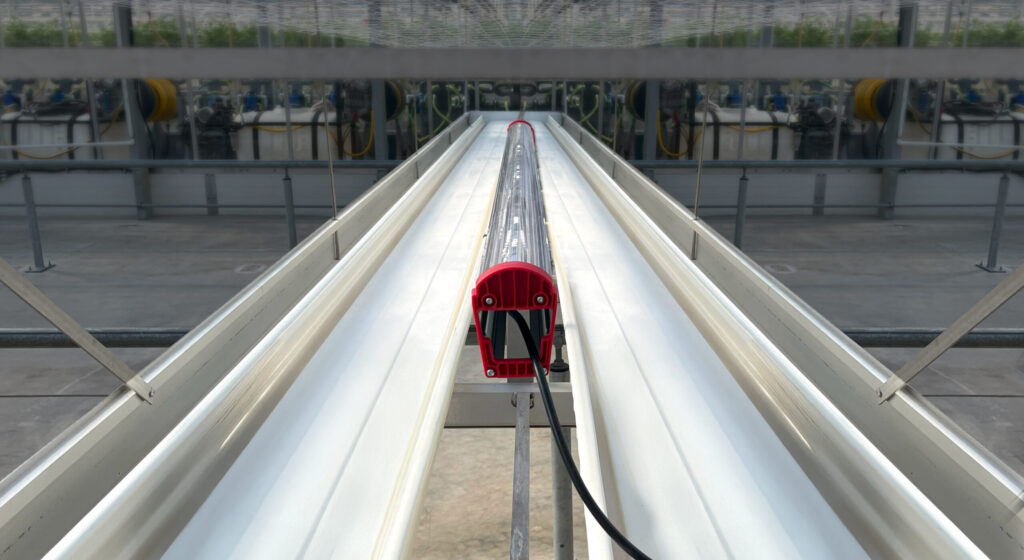

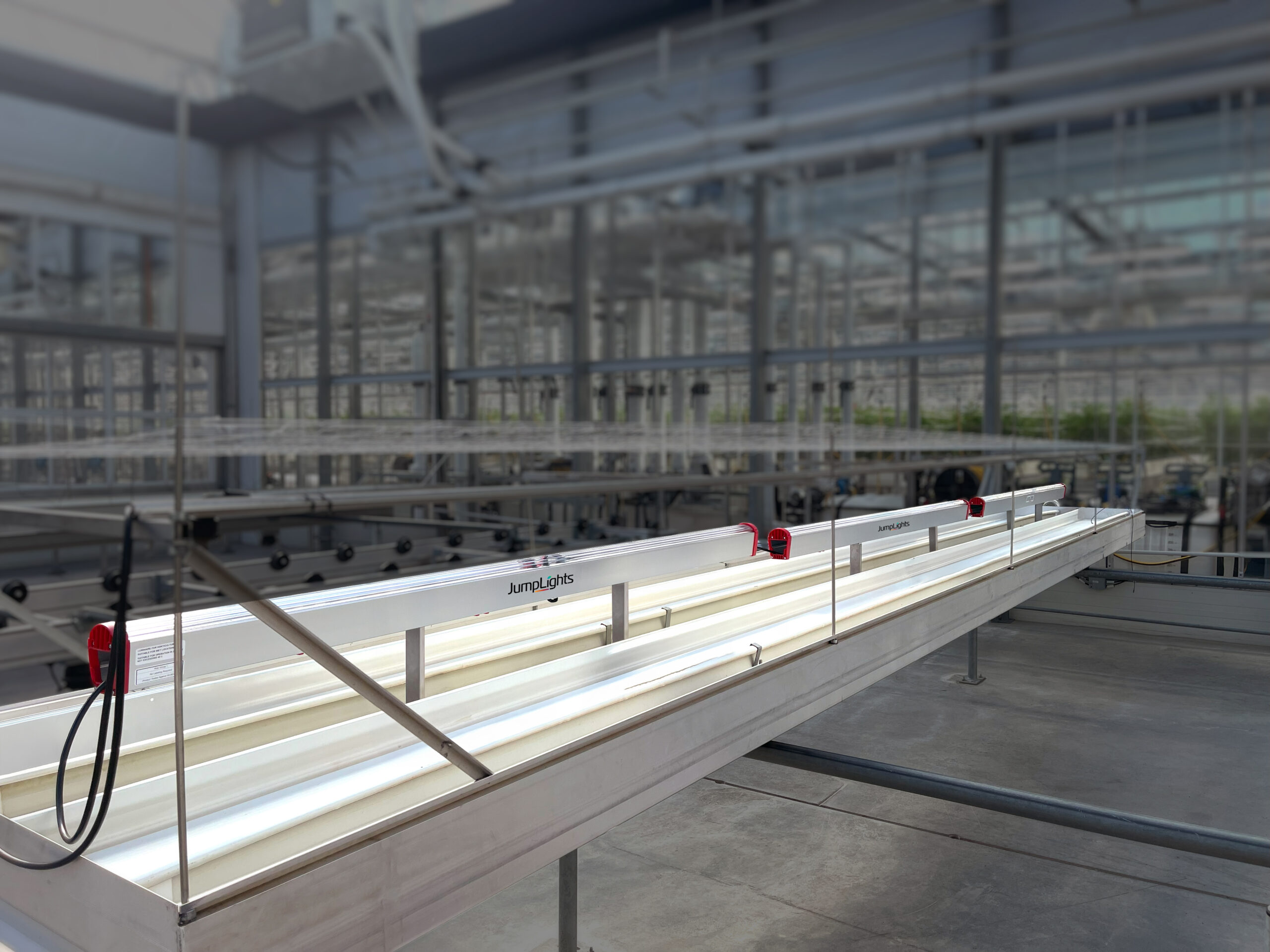

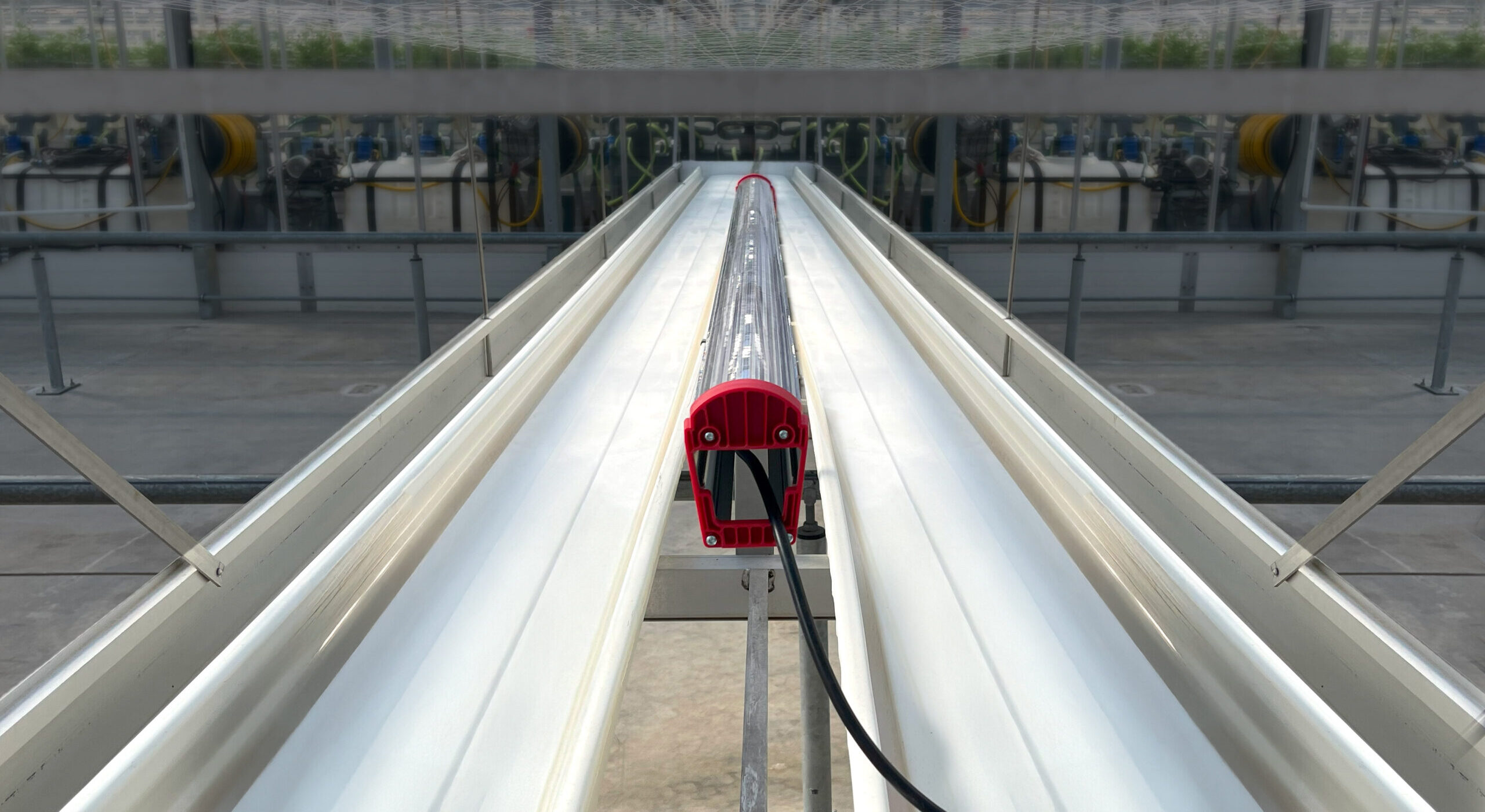

The Catalyst® Mobile is engineered to mount directly to greenhouse rolling benches with durable brackets designed to stay secure through bench movement and relocation. A single plug allows the mobile grow table to easily connect to a remote driver positioned above the table location. Compatible with all major brands of mobile grow tables and containers, including but not limited to:
HT Verboom
HOVE
KG Systems
and more.
Voltage Compatibility Without Compromise
Runs from standard 208–480V greenhouse power while distributing safe, low-voltage DC (under 250V) to fixtures near plant level. Remote drivers connect to daisy chained fixtures in various configurations and power options — keeping high voltages away from workers and above the plant canopy.
One system, flexible power and layout configurations.

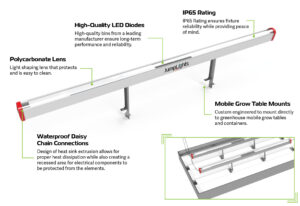

Key Benefits
Safe for High Voltage
Runs on 208–480V greenhouse power, but distributes safe, low-voltage DC (<250V) to fixtures near plant level.
Custom Mounts for Any Mobile Container System
Engineered to mount directly to greenhouse rolling benches with durable brackets designed to stay secure through bench movement and relocation.
Greenhouse-Optimized Spectrum
Tailored spectrum enhances productivity in both full-sun and supplemental-lighting environments.
Built for Harsh Greenhouse Conditions
Withstands moisture, movement, and environmental stresses to ensure long-term reliability.
Driver-Stays-Put Convenience
Keep high-voltage drivers mounted overhead while easily plugging/unplugging fixtures at the table level.
| Catalyst® GH Specifications – Single Unit | ||
|---|---|---|
| CA GH – 340 | CA GH – 260 | |
| PPF: (μmol/s) | 835 | 660 |
| Efficacy: (μmol/J) | 2.9 | 2.9 |
| Spectrum | Broad Spectrum — 52% Red | |
| Environment | Greenhouse | |
| Lighting Scheme | Under Canopy, supplemental | |
| Certifications | UL8800 Wet Location, IP65, DLC (pending) | |
| Warranty | 5 years | |
| Dimensions | 4.5”H x 3”W x 80L | |
| Weight | 11 lbs | |
| Ambient Temperature | 40° C max | |
| Remote Driver | ||
|---|---|---|
| CA GH – 340 | CA GH – 260 | |
| AC Input (V) | 208-480V | |
| AC Power (W) | 1250W | |
| AC Current 480V (A) | 2.7 | |
| AC Current 277V (A) | 4.65 | |
| Units Powered | 3 or 4 | 5 or 6 |
| Dimming | 0-10 VDC, Dim to Off, wired with LLT M12 connector | |
Catalyst® Mobile Spec Sheet
