ETS MAX 5B Double the Coverage for the Same Power
Optimal Plant Type: Ornamentals
Growth Stage: All Stages

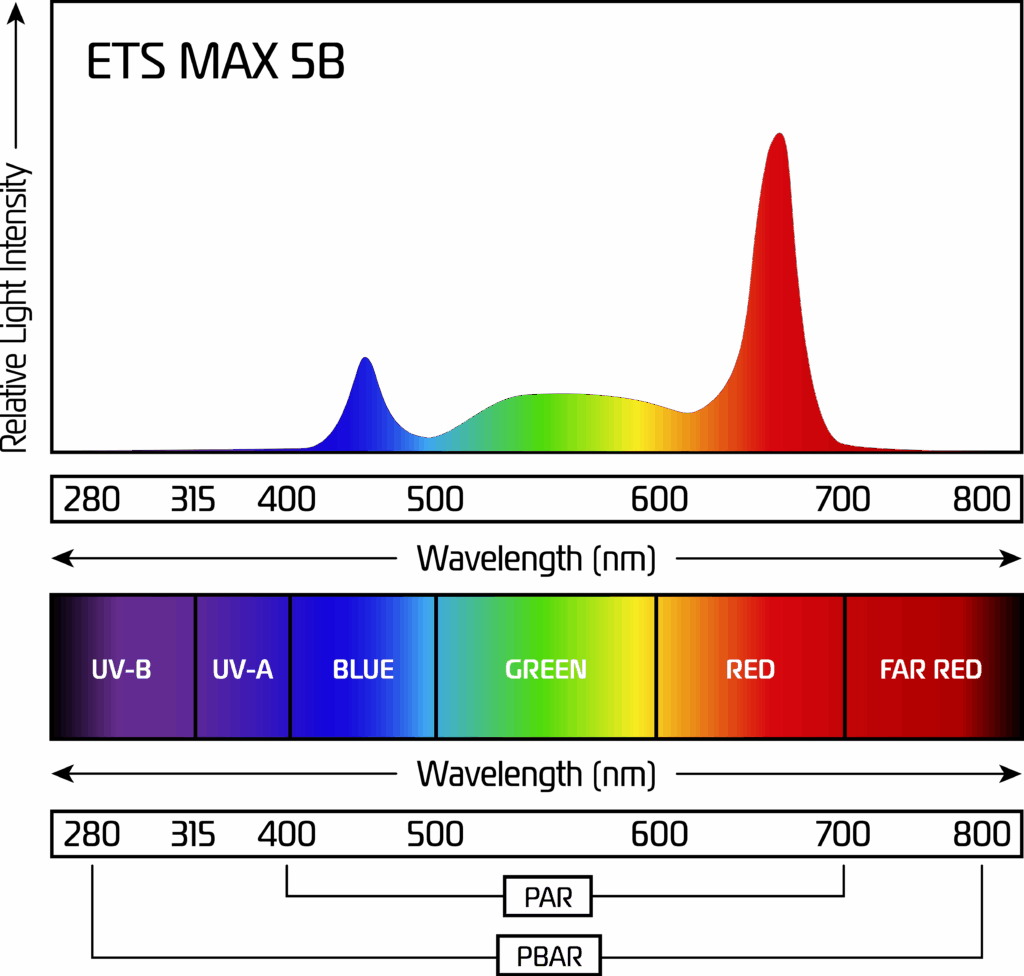

The ETS MAX 5B spectrum offers a balanced spectrum (57% red) that enhances visual quality and plant structure. This spectrum encourages compact, vibrant growth and color expression. Its high efficacy ensures that more usable light reaches your plants with less energy input, and uniform canopy lighting delivers consistent size, shape, and coloration across crops. It’s engineered for easy installation and long-term performance, helping growers maximize product and efficiency.
ETS MaxP-5B 3 Bars
Full Power:
PPF: 3,450 | PPE: 3.01*
87.5% Power:
PPF: 3,080 | PPE: 3.08*
65% Power:
PPF: 2,400 | PPE: 3.22*

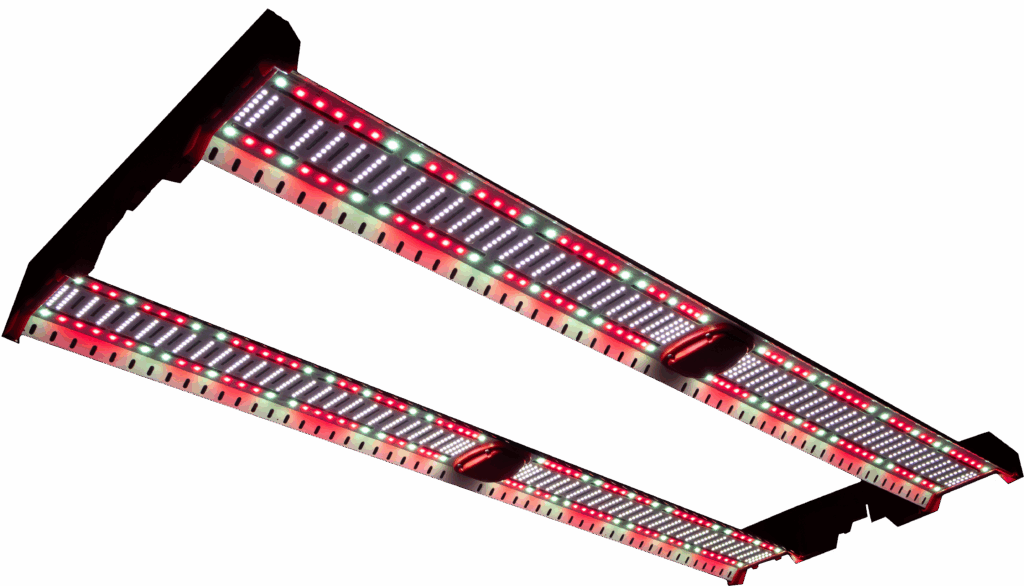

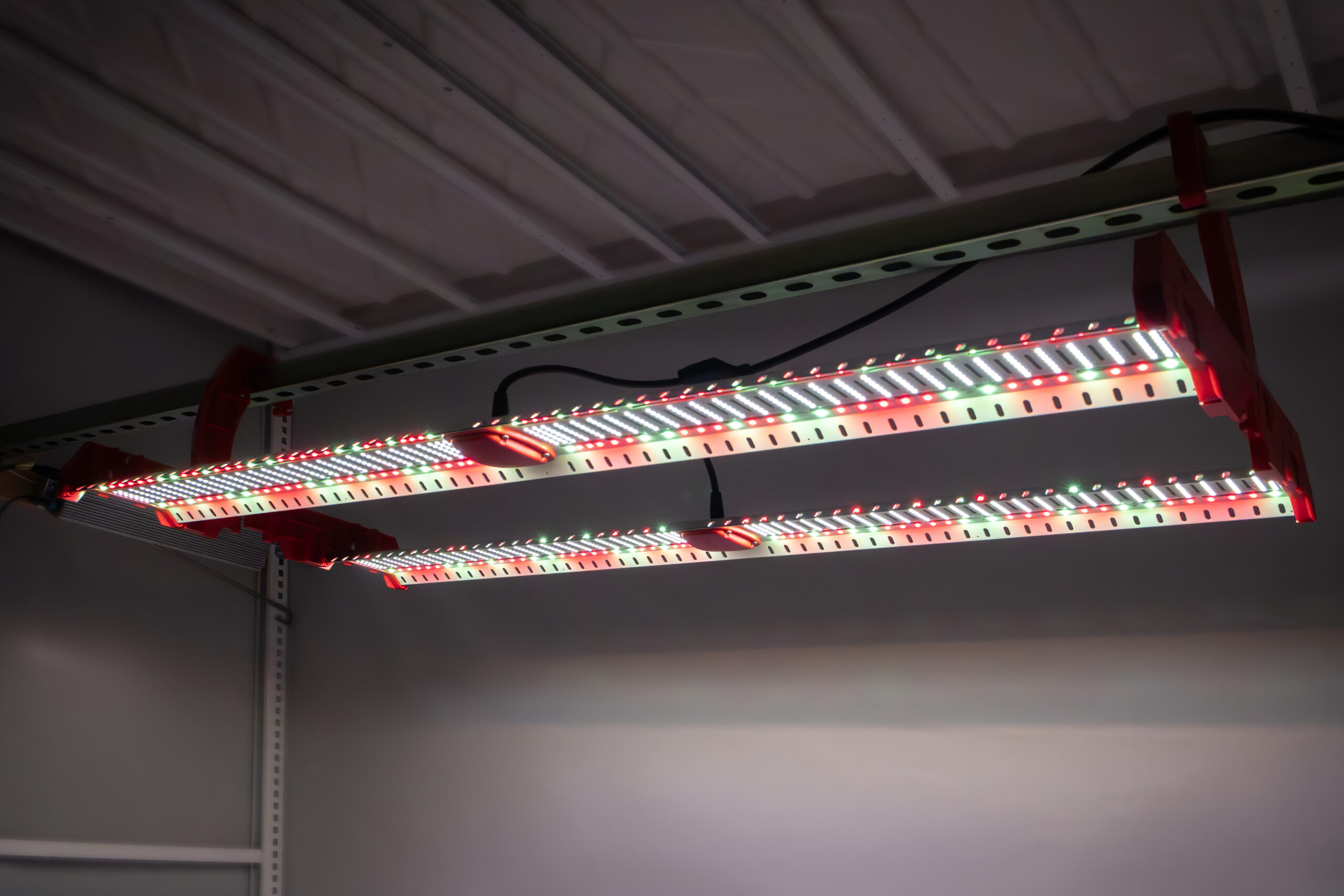

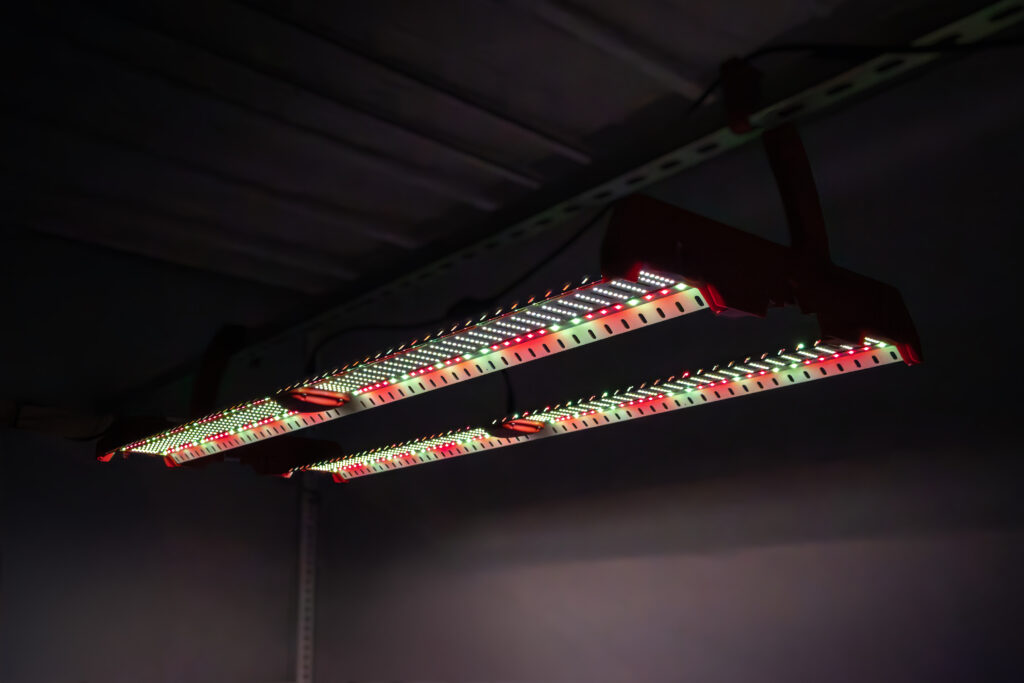

ETS MaxP-5B 2 Bars
Full Power:
PPF: 2,300 | PPE: 3.01*
87.5% Power:
PPF: 2,060 | PPE: 3.08*
65% Power:
PPF: 1,600 | PPE: 3.22*
*DC Efficacy
Multiple Spectrums and Flexible Power Options
| 5B Spectrum, 3 Bar Array | |||||
|---|---|---|---|---|---|
| Metric | ETS MaxP5B Single Bar DC Powered Full Power | ETS Max 1200P-480-5B-3 Bar Array | |||
| Full Power (1200W) | 1050W | 780W | |||
| Optical | Photosynthetic Photon Flux: PPF (µmol/s) | 1,150 | 3,450 | 3,080 | 2,400 |
| Photosynthetic Photon Efficacy: PPE (µmol/Joule) | 3.01 | ||||
| Efficacy – AC derated PPE (µmol/Joule) | 2.87 | 2.94 | 3.08 | ||
| DC | DC Input voltage | 53.7 | |||
| DC current (A) | 7.10 | ||||
| DC Power (W) | 382 | ||||
| AC & Driver | AC Voltage & Frequency (VAC) | 277 to 480 50/60Hz | |||
| AC Derated Power – Typical (W) | 1,200 | 1,050 | 780 | ||
| AC Current (typ) – 277 V | 4.33 | 3.79 | 2.82 | ||
| AC Current (typ) – 480 V | 2.50 | 2.19 | 1.63 | ||
| Power Factor | 0.941 | 0.951 | 0.961 | ||
| Total Harmonic Distortion (%) | 12.8 | 10.5 | 10.0 | ||
| Driver Lifetime | >50,000 hrs | ||||
| Maximum Ambient Temperature | 45 deg C | 45 deg C | |||
| Light Type | Controlled Environment | Indoor stacked, Indoor Non-stacked, and Greenhouse | |||
| Lighting Scheme | Top Light | ||||
| Use Case | Sole-source and Supplemental | ||||
| Dimming | Type | 0-10V IEC, Dim to Off | |||
| Connector | M12 Connector, Waterproof | ||||
| Safety & Certifications | UL8800 | Certified | |||
| Design Lights Consortium | Pending | ||||
| Lifetime | Photon Flux Maintenance L90 | >50,000 Hours | |||
| Warranty | 5 Year Parts and Labor | ||||
5B Spectrum, 3 Bar Array Spec Sheet
| 5B Spectrum, 2 Bar Array | |||||
|---|---|---|---|---|---|
| Metric | ETS MaxP5B Single Bar DC Powered Full Power | ETS Max 800P-480-5B-2 bar array | |||
| Full Power (800W) | 700W | 520W | |||
| Optical | Photosynthetic Photon Flux: PPF (µmol/s) | 1,150 | 2,300 | 2,060 | 1,600 |
| Photosynthetic Photon Efficacy: PPE (µmol/Joule) | 3.01 | ||||
| Efficacy – AC derated PPE (µmol/Joule) | 2.87 | 2.94 | 3.08 | ||
| DC | DC Input voltage | 53.7 | |||
| DC current (A) | 7.10 | ||||
| DC Power (W) | 382 | ||||
| AC & Driver | AC Voltage & Frequency (VAC) | 277 to 480 50/60Hz | |||
| AC Derated Power – Typical (W) | 800 | 700 | 520 | ||
| AC Current (typ) – 277 V | 2.89 | 2.53 | 1.88 | ||
| AC Current (typ) – 480 V | 1.67 | 1.46 | 1.08 | ||
| Power Factor | 0.941 | 0.951 | 0.961 | ||
| Total Harmonic Distortion (%) | 12.8 | 10.5 | 10.0 | ||
| Driver Lifetime | >50,000 hrs | ||||
| Maximum Ambient Temperature | 45 deg C | 45 deg C | |||
| Light Type | Controlled Environment | Indoor stacked, Indoor Non-stacked, and Greenhouse | |||
| Lighting Scheme | Top Light | ||||
| Use Case | Sole-source and Supplemental | ||||
| Dimming | Type | 0-10V IEC, Dim to Off | |||
| Connector | M12 Connector, Waterproof | ||||
| Safety & Certifications | UL8800 | Certified | |||
| Design Lights Consortium | Pending | ||||
| Lifetime | Photon Flux Maintenance L90 | >50,000 Hours | |||
| Warranty | 5 Year Parts and Labor | ||||
5B Spectrum, 2 Bar Array Spec Sheet
