ETS MAX 7A

Twice the light as HPS for the same power

Cannabis Over-Canopy

The ETS MAX is the most efficient greenhouse cannabis light available for its spectrum, delivering more light, higher efficiency, and greater yields. Engineered with a moderate 76% red spectrum, the ETS MAX is perfectly suited for high-performance greenhouse cultivation. This lightweight, easy-to-install fixture reduces structural load on the greenhouse and is available in multiple power options to align with your existing power infrastructure, and comes in either 2 bar or 3 bar array options.

Catalyst Plant Cutout

ETS MaxP-7A 3 Bars

Full Power:
PPF: 3,900 | PPE: 3.48*

87.5% Power:
PPF: 3,550 | PPE: 3.55*

66% Power
PPF: 2,750 | PPE: 3.69*

ETS MaxP-7A 2 Bars

Full Power:
PPF: 2,600 | PPE: 3.48*

87.5% Power:
PPF: 2,370 | PPE: 3.55*

66% Power
PPF: 1,830 | PPE: 3.69*

*DC Efficacy

Twice the Light Output of an HPS Fixture for the Same Power

ETS MAX 7A Features


ETS MAX Technology

Delivers a bright, durable, lightweight fixture with customizable power and fall pattern options

Higher Yields & Potency

Produces double the light output compared to HPS lights for the same power, optimizing flowering and cannabinoid development

Flexible Mounting Hooks or Wires

Multiple configurations for easy setup and installation

2-Bar Array

Enhanced Efficiency

Higher efficacy than previous models, delivering more usable light per watt

76% Red Spectrum

Industry-leading efficiency with up to 3.69 DC PPE

High-Output LED Design

Delivers Exceptional PPFD levels for improved canopy penetration

Contact Us

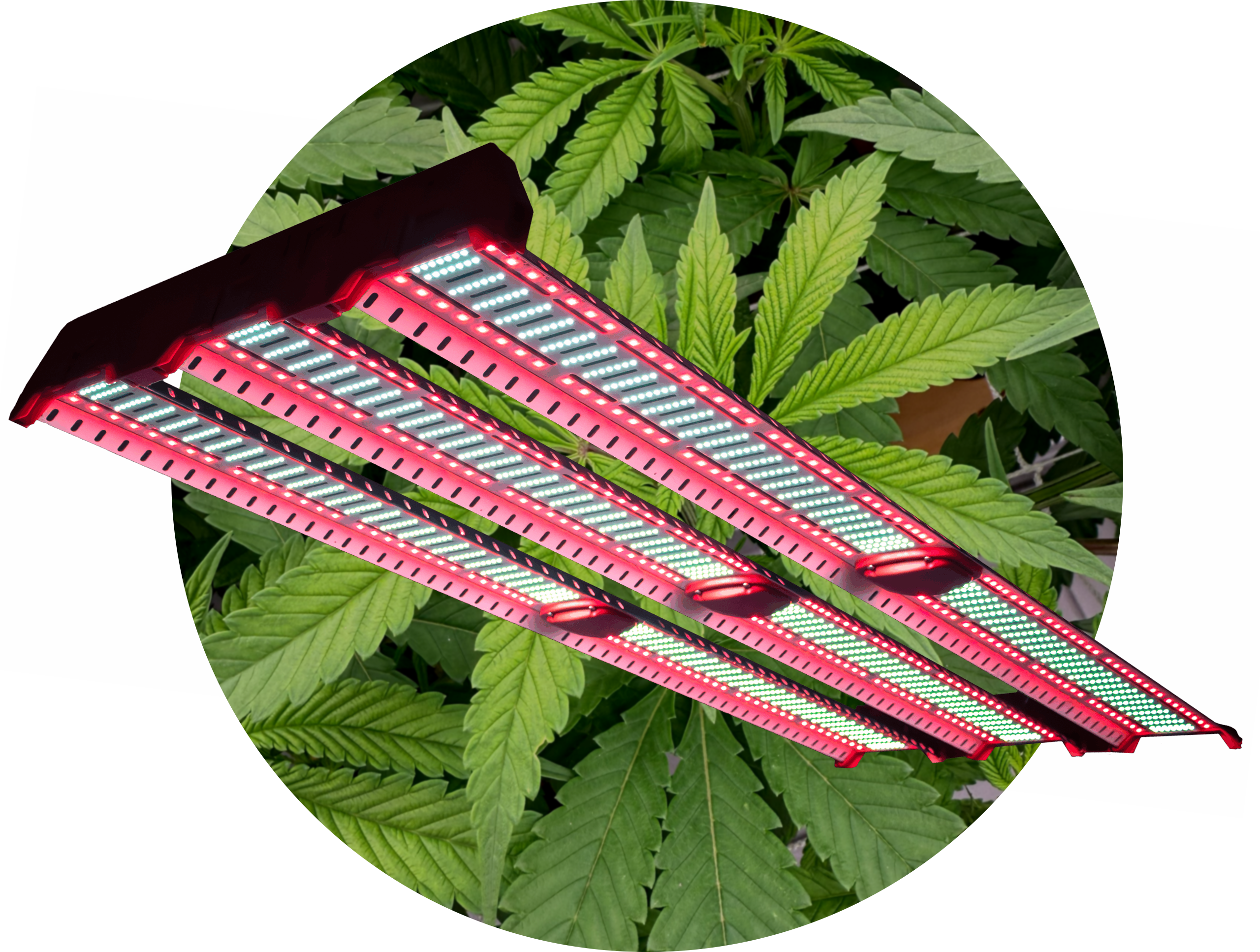

Closeup of the ETS Max 7A

7A Spectrum, 3 Bar Array
Metric ETS MaxP-7A Single Bar DC Powered Full Power ETS Max 1200P-480-7A-3 Bar Array
Full Power (1200W) 1050W 780W
Optical Photosynthetic Photon Flux: PPF (µmol/s) 1,303 3,900 3,560 2,750
Photosynthetic Photon Efficacy: PPE (µmol/Joule) 3.48
Efficacy – AC derated PPE (µmol/Joule) (worst case 277/480V) 3.25 3.32 3.45
DC DC Input voltage 49.1
DC current (A) 7.62
DC Power (W) 375
AC & Driver AC Voltage & Frequency (VAC) 277 to 480 50/60Hz
AC Derated Power – Typical (W) 1,200
AC Current (typ) – 277 V 4.51
AC Current (typ) – 480 V 2.70
Power Factor
(worst case @480V)
0.944
Total Harmonic Distortion (%)
(worst case @ 480V)
13.3
Driver Lifetime >50,000 hrs
Maximum Ambient Temperature 45 deg C 45 deg C

Light Type Controlled Environment Indoor stacked, Indoor Non-stacked, and Greenhouse
Lighting Scheme Top Light
Use Case Sole-source and Supplemental
Dimming Type 0-10V IEC, Dim to Off
Connector M12 Connector, Waterproof
Safety & Certifications UL8800 Certified
Design Lights Consortium Pending
Lifetime Photon Flux Maintenance L90 >50,000 Hours
Warranty 5 Year Parts and Labor



7A Spectrum, 3 Bar Array Spec Sheet

Download

7A Spectrum, 2 Bar Array
Metric ETS MaxP-7A Single Bar DC Powered Full Power ETS Max 800P-480-7A-2 bar array
Full Power (800W) 700W 520W
Optical Photosynthetic Photon Flux: PPF (µmol/s) 1,304 2,600 2,370 1,830
Photosynthetic Photon Efficacy: PPE (µmol/Joule) 3.48
Efficacy – AC derated PPE (µmol/Joule) (worst case 277/480V) 3.25 3.32 3.45
DC DC Input voltage 49.1
DC current (A) 7.62
DC Power (W) 375
AC & Driver AC Voltage & Frequency (VAC) 277 to 480 50/60Hz
AC Derated Power – Typical (W) 800
AC Current (typ) – 277 V 2.93
AC Current (typ) – 480 V 1.81
Power Factor
(worst case @ 480V)
0.918
Total Harmonic Distortion (%)
(worst case @ 480V)
17.5
Driver Lifetime
Maximum Ambient Temperature 45 deg C 45 deg C

Light Type Controlled Environment Indoor stacked, Indoor Non-stacked, and Greenhouse
Lighting Scheme Top Light
Use Case Sole-source and Supplemental
Dimming Type 0-10V IEC, Dim to Off
Connector M12 Connector, Waterproof
Safety & Certifications UL8800 Certified
Design Lights Consortium Pending
Lifetime Photon Flux Maintenance L90 >50,000 Hours
Warranty 5 Year Parts and Labor



7A Spectrum, 2 Bar Array Spec Sheet

Download
